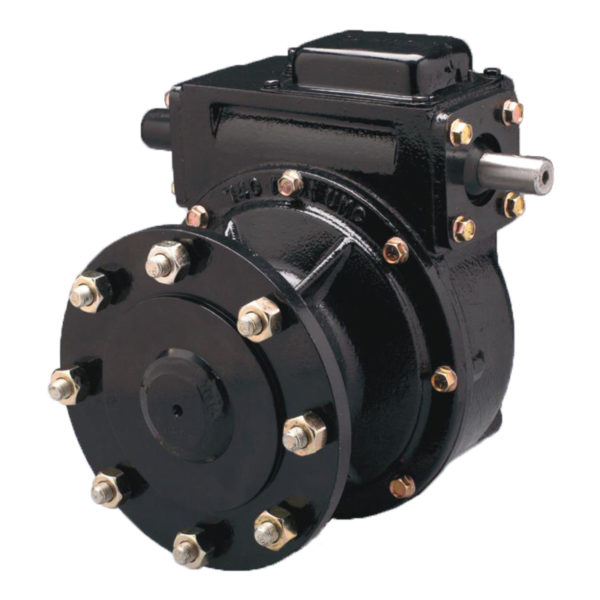

UMC 740-U Gearbox 50:1 Ratio

Place OrderFind Dealer

Description

UMC 740-U Gearbox Ratio 50:1 for Center Pivot Lateral Move and Linear Irrigation Systems

740-U 50:1 Ratio designed for longer spans, larger wheels, and heavier towers. This gearbox is UMC’s standard ultimate duty gearbox that is capable of handling nearly any field condition. Although it is overkill for conditions where a Moderate Duty or a 725 gearbox would suffice, many growers like the versatility of the 740 as it allows for operating in conditions where wheel rust may exist, soil can be heavy and terrain is uneven. The UMC 740-U final drive gearbox features a 2.25″ output shaft with larger input bearings capable of handling more input load. The gearbox also features cartridge input and output seals. It is designed to support longer spans, larger wheels, and heavier towers for use on centre pivots and linear irrigation/lateral move irrigation systems.

Features and Benefits

  • 2.25″ output shaft
  • 50:1 gear ratio
  • Cartridge input and output seals
  • Larger input bearings
  • Input shaft guard
  • External seal protectors for input and output seals
  • Top oil fill plug
  • Universal mounting pattern
  • Full cycle expansion chamber with stainless steel cover
  • Filled with extreme pressure worm gear oil
  • Steel output shaft and input shaft
  • Tapered roller bearings
  • Includes carriage bolts and nuts
  • Dual-ended input shaft
