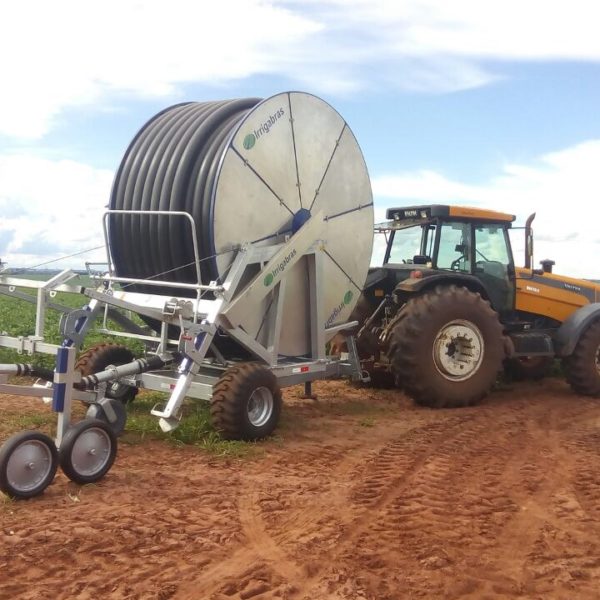

Irrigarbras Hard Hose Irrigator Structure F


Structure F


Polyethylene hose
Ø 110mm – Length: 450m, 500m and 550m
Ø 125mm – Length: 350m and 400m
Ø 140mm – Length: 300m, 350m and 365m


  • Gearbox with 4 speeds.
  • Hot galvanized 5-wheel offset sprinkler trolley.
  • Impulse sprinkler with slow reverse.


  • Electronic control panel with speed equalizer, internal speed sensor and solar panel.
  • Hydraulic hold-down ad lifting device of sprinkler trolley by hand pump.
  • Double water inlet.
  • Front axle.
  • Sprinkler driven by turbine device or variable jet-angle.

Sprinklers available

  • Reflex
  • Explorer
  • Gemini
  • Kronos (variable angles)
  • Twin 202 Ultra
  • SDC – 100
